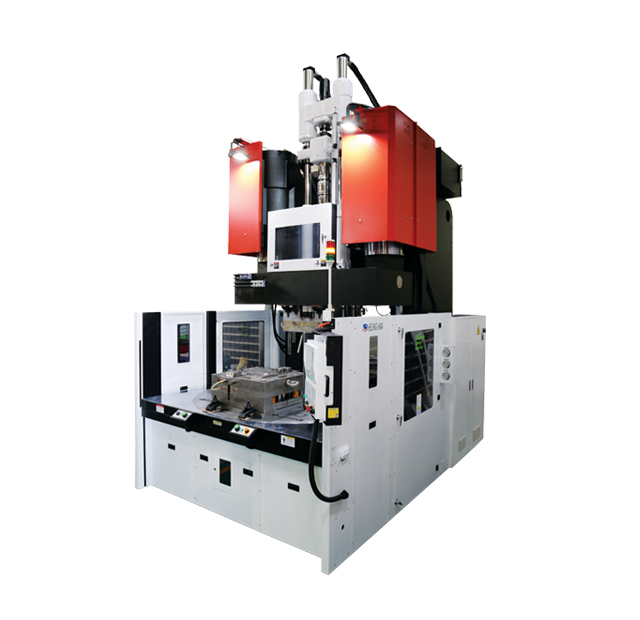

HXRL 'C Type'(50~600 TON)

Tiebarless Low deck 'C Type' Series

Tiberless low deck C-type has superior workability without a tiebar
And it is the first in the world to be developed and produced at 600MT,
which has a significant advantage in large insert injection.

PDF Download
HXRL C Type

Characteristics

  • Increase in utilization of more bigger injection mold than
    existing injection molding machine since it has no tiebar
  • Easy automation equipment installation by eliminating tiebar.
  • Compact design against same ton by eliminating tiebar.
  • Improves working stability with ergonomic design and easy attach-detach of molds.
  • Realization optimal mold-plate due to especially-designed mold-plate balancer.
  • It is of great advantage to large product production such as automobile part Mold and precise work because clamping step up completed within 0.15 second.
  • Realization hypersensitive Mold protection with overwhelming Mold protection system.
Application of Turn table and Mold size
A B C D
50TON Ø800 300 250 400
75TON Ø1100 400 330 550
100TON Ø1100 400 330 550
120TON Ø1200 460 360 650
150TON Ø1350 540 440 720
200TON Ø1600 620 520 900
250TON Ø1700 690 550 940
300TON Ø1800 780 650 1090
400TON Ø2000 810 670 1090
500TON Ø2200 900 750 1170
600TON Ø2500 1000 850 1300

Floor plan

도면

Technical Data - INJECTION

Screw Symbol Screw Diameter Injection Capacity Injection Weight Injection Pressure Injection Rate Injection Distance Screw Rotation
Unit mm ㎤
g oz
kg/㎠ ㎤/sec mm rpm
HXRL-50VS Y 22 46
48 1.7
2936 48 120 0-400
*A 25 59
62 2.2
2274 62
B 28 74
78 2.7
1813 77
HXRL-75VS Y 28 98
103 3.6
2813 66 160 0-300
*A 28 98
103 3.9
2813 66
B 36 163
171 6.0
1701 110
HXRL-100VS Y 32 137
143 5.1
2461 95 170 0-280
*A 36 173
182 6.4
1944 120
B 40 214
224 7.9
1575 148
HXRL-120VS Y 36 183
192 6.8
2198 127 180 0-280
*A 40 226
237 8.4
1781 157
B 45 286
300 10.6
1608 199
HXRL-150VS Y 40 251
264 9.3
2446 143 200 0-250
*A 45 318
334 11.8
1932 181
B 50 393
412 14.5
1789 224
HXRL-200VS Y 45 350
367 13.0
2333 180 220 0-250
*A 50 432
453 16.0
1890 222
B 55 522
549 19.3
1785 269
HXRL-250VS Y 50 471
495 17.4
2061 249 240 0-240
*A 55 570
598 21.1
1703 301
B 60 678
712 25.1
1636 359
HXRL-300VS Y 50 471
495 17.4
2061 249 240 0-240
*A 55 570
598 21.1
1703 301
B 60 678
712 25.1
1636 359
HXRL-400VS Y 55 570
648 22.9
2083 280 240 0-240
*A 60 678
771 27.2
1750 333
B 65 796
905 31.9
1704 391
HXRL-500VS Y 60 678
831 29.3
2022 346 240 0-240
*A 65 796
975 34.4
1723 406
B 70 923
1131 39.9
1698 471
HXRL-600VS Y 80 678
1583 55.8
2015 529 300 0-240
*A 85 796
1787 63.0
1785 598
B 90 923
2003 70.7
1692 670

Technical Data - CLAMPING

Clamping Force Opening Force Table Size Min. Mold Thickness Clamping Stroke Max. Mold Thickness Ejection Force Ejection Stroke
Unit ton ton mm mm mm mm ton mm
HXRL-50VS 50 5 Ø800 200 280 530 2 60
HXRL-75VS 75 6.5 Ø1100 250 320 570 2.7 70
HXRL-100VS 100 7 Ø1100 260 340 600 2.7 80
HXRL-120VS 120 8 Ø1200 300 370 670 4.3 100
HXRL-150VS 150 9 Ø1350 400 400 800 4.3 110
HXRL-200VS 200 13.5 Ø1600 350 550 900 7 110
HXRL-250VS 250 13.5 Ø1700 350 550 900 7 110
HXRL-300VS 300 15 Ø1800 400 550 850 7 120
HXRL-400VS 400 19 Ø2000 500 550 1050 11 120
HXRL-500VS 500 25 Ø2200 400 700 1100 11 120
HXRL-600VS 600 27 Ø2500 600 700 1300 11 120

Technical Data - COMMO

Oil Tank Capacity Pump Capacity Heater Capacity Machine Size Machine Weight
Unit ℓ kw kw m ton
HXRL-50VS 120 12 3.5 2.3 X 1.3 X 2.5(3.1) 5
HXRL-75VS 190 18 6.2 2.5 X 1.4 X 2.75(3.3) 9.6
HXRL-100VS 220 18.7 7.5 2.5 X 1.5 X 2.8(3.5) 106
HXRL-120VS 250 22 7.7 2.7 X 1.7 X 2.9(3.6) 106
HXRL-150VS 300 28.3 12.7 2.8 X 1.8 X 3.5(4.2) 14.7
HXRL-200VS 390 33 12.9 3.1 X 1.9 X 3.4(4.3) 22.5
HXRL-250VS 390 36.7 14.1 3.2 X 2 X 3.5(4.3) 23.5
HXRL-300VS 550 36.7 14.1 3.4 X 2.1 X 3.7(4.6) 26
HXRL-400VS 600 45 16 3.7 X 2.6 X 3.9(4.9) 40
HXRL-500VS 700 66 19.9 4.5 X 2.6 X 4.1(5.3) 49
HXRL-600VS 700 73.4 34.3 4.6 X 3 X 4.3(5.5) 56
