SILICON

LSR Molding machine

Unlike other companies, HEUNGHWA's Silicon equipment can produce all parts related to silicon from Injection Molding
Machines to Dosing units, processing units, exclusive using screw and shut-off nozzle enabling ALL-IN-ONE management

PDF Download

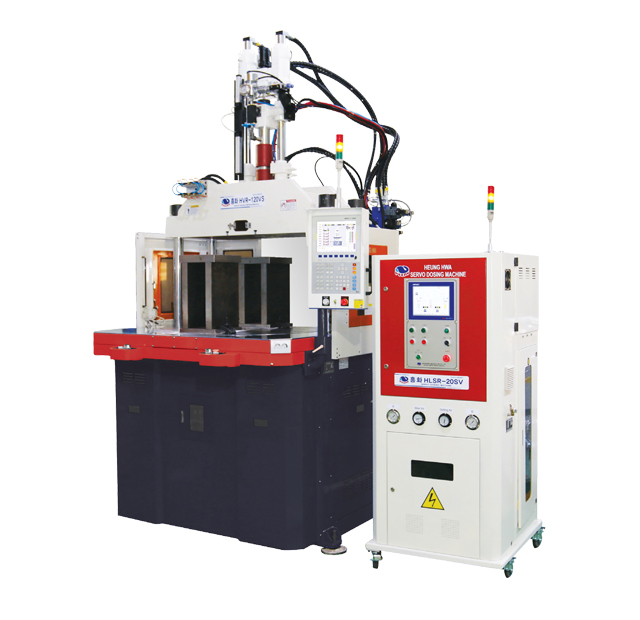

SILICON

(LSR Mixing & Supply Device)

Barrelpressure

Raw-material A

Raw-material B

Mixer block

Pressure control valve

Static mixer

Mold

Injection device

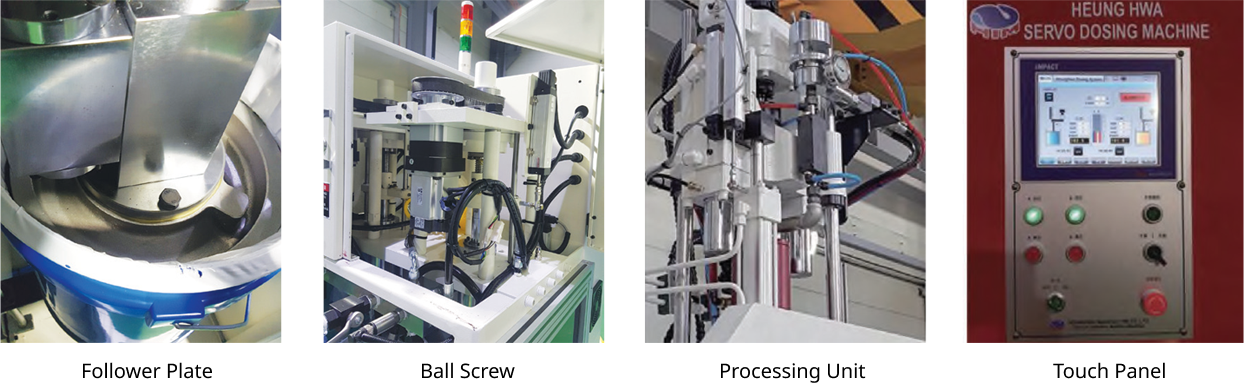

Characteristics

  • Precision driving control of Feeding+Dosing pump under electric servo motor
  • No noise and pollution due to the control of pump operation under electric servo motor.
  • Suitable for clean room production.
  • Precision digital additive device / Ultra-precise color input available.
  • Smart follower plate, Mini material replacement losses.
  • Through development of flat plate adsorption, remaing meterial ＜ 1%
  • Easy-to-use and convenient control screen
  • Max material pressure : 200bar
  • Mixing ratio : 1:1 / A:B Mixing precision ＜ 1%
  • 20L, 200L Model
실리콘 장비

POWER

Viscosity Flow Rate Per Min Mixing Ratio
Unit mPa·s g/min
HLSR-20 600,000 ~ 1,000,000 800 1:1
HLSR-200 600,000 ~ 1,000,000 1500 1:1

Consumption / Connections

Movement Connection Pneumatic Air Consumption Electricity Connection LIM Machines
Unit m3/h
HLSR-20 servo Rc1/4-8 bar low 2.2kw DC 24V
HLSR-200 servo 6.5 ~ 8bar low 5kw DC 24V

Dimensions / Weight

Space Requested Weight
Unit m kg
HLSR-20 1.2×0.7×2 400
HLSR-200 1.2×1.0×2.6 520
