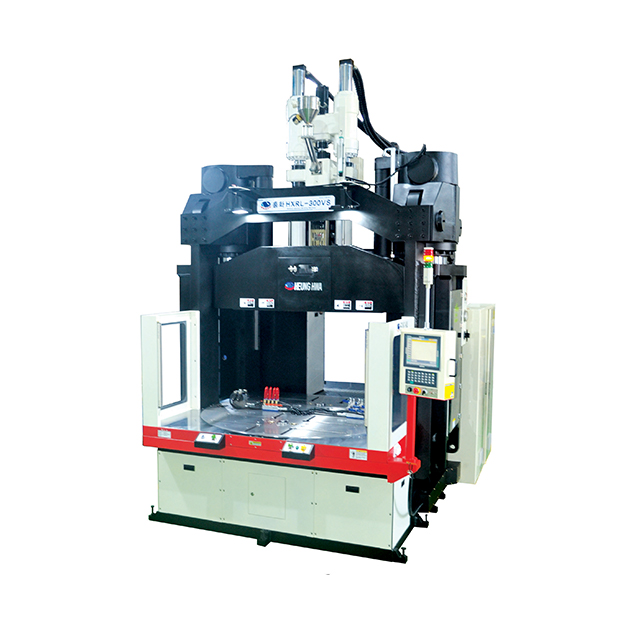

HXRL 'U Type'(200~600 TON)

Tiebarless Low deck 'U Type' Series

U-type low deck injection molding machine frame structure designed by 3D program can be trusted
and assemble is brief along the assemble method to the 4(four) place with upper part PIN boring from
CNC precision boring machine, No maintenance is required as well as assemble because of it do not
need tighten or fit a PIN.

PDF Download
HXRL U Type

Characteristics

  • Increase in utilization of more bigger injection mold than existing injection molding machine since it has no tiebar
  • Easy automation equipment installation by eliminating tiebar.
  • Compact design against same ton by eliminating tiebar.
  • Improves working stability with ergonomic design and easy detachable.
  • It has no modified by eliminating stress with annealing heat treatment after manufactured high stiffness frame structural steel plate.
  • It is of great advantage to large product production such as automobile part Mold and precise work because clamping step up completed within 0.15 second.
  • Realization hypersensitive Mold protection with overwhelming Mold protection system as a competitors.
  • Machinical optimal stability by maxcimizing of stable frame structure
Application of Turn table and Mold size
A B C D
200TON Ø1600 620 520 900
250TON Ø1700 690 550 940
300TON Ø1800 740 600 1000
400TON Ø2000 810 670 1090
500TON Ø2400 920 780 1200
600TON Ø2500 1000 850 1300

Floor plan

도면

Technical Data - INJECTION

Screw Symbol Screw Diameter Injection Capacity Injection Weight Injection Pressure Injection Rate Injection Distance Screw Rotation
Unit mm ㎤
g oz
kg/㎠ ㎤/sec mm rpm
HXRL-200VS Y 45 350
367 13.0
2333 180 220 0-250
*A 50 432
453 16.0
1890 222
B 55 522
549 19.3
1785 269
HXRL-250VS Y 50 471
495 17.4
2061 249 240 0-240
*A 55 570
598 21.1
1703 301
B 60 678
712 25.1
1636 359
HXRL-300VS Y 50 471
495 17.4
2061 249 240 0-240
*A 55 570
598 21.1
1703 301
B 60 678
712 25.1
1636 359
HXRL-400VS Y 55 570
648 22.9
2083 280 240 0-240
*A 60 678
771 27.2
1750 333
B 65 796
905 31.9
1704 391
HXRL-500VS Y 60 678
831 29.3
2022 346 240 0-240
*A 65 796
975 34.4
1723 406
B 70 923
1131 39.9
1698 471
HXRL-600VS Y 80 678
1583 55.8
2015 529 300 0-240
*A 85 796
1787 63.0
1785 598
B 90 923
2003 70.7
1692 670

Technical Data - CLAMPING

Clamping Force Opening Force Table Size Min. Mold Thickness Clamping Stroke Max. Mold Thickness Ejection Force Ejection Stroke
Unit ton ton mm mm mm mm ton mm
HXRL-200VS 200 13.5 Ø1600 350 550 900 7 110
HXRL-250VS 250 13.5 Ø1700 350 550 900 7 110
HXRL-300VS 300 15 Ø1800 400 550 950 7 120
HXRL-400VS 400 19 Ø2000 500 550 1050 11 120
HXRL-500VS 500 25 Ø2400 400 700 1100 11 120
HXRL-600VS 600 27 Ø2500 600 700 1300 11 120

Technical Data - COMMO

Oil Tank Capacity Pump Capacity Heater Capacity Machine Size Machine Weight
Unit ℓ kw kw m ton
HXRL-200VS 390 33 12.9 3.1 X 1.9 X 3.4(4.3) 18
HXRL-250VS 390 36.7 14.1 3.2 X 2 X 3.5(4.3) 20
HXRL-300VS 550 36.7 14.1 3.4 X 2.1 X 3.7(4.6) 24
HXRL-400VS 600 45 16 3.7 X 2.6 X 3.9(4.9) 33
HXRL-500VS 700 66 19.9 4.5 X 2.6 X 4.1(5.3) 42
HXRL-600VS 700 73.4 34.3 4.6 X 3 X 4.3(5.5) 48
