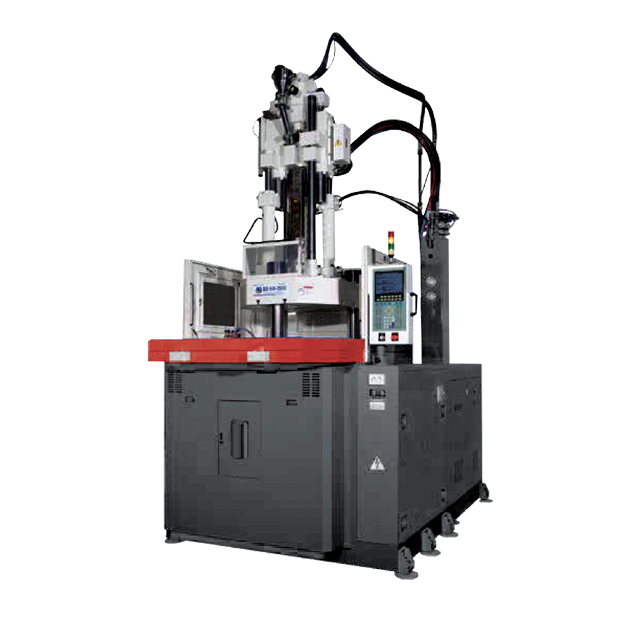

HVR(50~500 TON)

ROTARY TYPE,High speed, energy saving

PDF Download
HVR

Characteristics

  • Realization of operator’s usability and stability
  • Automation induction in simple while insert injection work
  • Time reduction & maximize productivity caused by high speed injection
  • Easy Mold change for the 1 set & 2 sets
  • Increase stability and quality of a work
  • Manufacture available of a 3 Tie-bar & 4 Tie-bar type
  • Minimize temperature management deviation with adopt complete range ceramic heaters
Application of Turn table and Mold size
A B C D
50TON Ø700 260 220 340
75TON Ø1000 380 320 500
100TON Ø1100 400 340 550
120TON Ø1200 460 400 600
150TON Ø1300 500 400 690
200TON Ø1400 540 440 730
250TON Ø1500 560 460 800
300TON Ø1600 620 520 900
350TON Ø1800 780 650 1000
400TON Ø2000 810 670 1090
450TON Ø2200 900 750 1170
500TON Ø2500 1000 850 1300

Floor plan

도면

Technical Data - INJECTION

Screw Symbol Screw Diameter Injection Weight Injection Pressure Injection Rate Injection Distance Screw Rotation
Unit mm
g oz
kg/㎠ ㎤/sec mm rpm
HVR-50VS Y 22
48 1.7
2936 48 120 0-400
*A 25
62 2.2
2274 62
B 28
78 2.8
1813 77
HVR-75VS Y 28
103 3.6
2813 66 160 0-300
*A 32
135 4.8
2153 87
B 36
171 6.0
1701 110
HVR-100VS Y 32
143 5.0
2461 95 170 0-280
*A 36
182 6.4
1944 120
B 40
224 7.9
1575 148
HVR-120VS Y 36
192 6.8
2198 127 180 0-280
*A 40
237 8.4
1781 157
B 45
300 10.6
1608 199
HVR-150VS Y 40
264 9.3
2446 143 200 0-250
*A 45
334 11.8
1932 181
B 50
412 14.5
1789 224
HVR-200VS Y 45
367 12.9
2333 180 220 0-250
*A 50
453 16.0
1890 222
B 55
549 19.4
1785 269
HVR-250VS Y 50
495 17.5
2061 249 240 0-240
*A 55
598 21.1
1703 301
B 60
712 25.1
1636 359
HVR-300VS Y 50
495 17.5
2061 249 240 0-240
*A 55
598 21.1
1703 301
B 60
712 25.1
1636 359
HVR-350VS Y 55
648 22.9
2083 280 240 0-300
*A 60
771 27.2
1750 333
B 65
905 31.9
1704 391
HVR-400VS Y 55
648 22.9
2083 280 240 0-300
*A 60
771 27.2
1750 333
B 65
905 31.9
1704 391
HVR-450VS Y 60
831 29.3
2022 346 240 0-300
*A 65
975 34.4
1723 406
B 70
1131 39.9
1698 471
HVR-500VS Y 60
831 29.3
2022 346 240 0-300
*A 65
975 34.4
1723 406
B 70
1131 39.9
1698 471

Technical Data - CLAMPING

Clamping Force Opening Force Table Size Min. Mold Thickness Clamping Stroke Max. Mold Thickness Ejection Force Ejection Stroke
Unit ton ton mm mm mm mm ton mm
HVR-50VS 50 4 Ø700 200 250 450 2.7 60
HVR-75VS 75 6 Ø1000 230 280 510 4.3 70
HVR-100VS 100 8 Ø1100 260 300 560 4.3 80
HVR-120VS 120 10 Ø1200 300 300 600 4.3 100
HVR-150VS 150 13 Ø1300 300 400 700 4.3 110
HVR-200VS 200 17 Ø1400 350 450 800 7 110
HVR-250VS 250 210 Ø1500 380 450 830 7 120
HVR-300VS 300 25 Ø1600 500 500 1000 7 120
HVR-350VS 350 29 Ø1800 500 550 1050 11 120
HVR-400VS 400 33 Ø2000 600 600 1200 11 120
HVR-450VS 450 38 Ø2200 600 650 1250 11 120
HVR-500VS 500 42 Ø2500 600 650 1250 11 120

Technical Data - COMMO

Oil Tank Capacity Pump Capacity Heater Capacity Machine Size Machine Weight
Unit ℓ kw/hp kw m ton
HVR-50VS 120 12 3.7 1.95 X 1.0 X 2.6 2.9
HVR-75VS 180 15 5.2 2.2 X 1.15 X 3.1 3.7
HVR-100VS 240 18.5 6.2 2.3 X 1.35 X 3.75 4.8
HVR-120VS 240 30 6.2 2.6 X 1.4 X 3.95 5.7
HVR-150VS 350 30 12.2 2.8 X 1.5 X 4.6 7.2
HVR-200VS 450 45 13 3.0 X 1.6 X 4.8 8.6
HVR-250VS 500 50 13 3.2 X 1.8 X 5.4 9.8
HVR-300VS 550 50 21 3.2 X 1.9 X 5.6 11.7
HVR-350VS 600 55 21 3.5 X 2.15 X 5.5 13.5
HVR-400VS 650 55 21 3.5 X 2.15 X 5.5 16
HVR-450VS 700 55 21 3.5 X 2.15 X 5.7 22
HVR-500VS 700 55 21 3.5 X 2.15 X 5.9 26
