HVM(25~500 TON)

BASIC TYPE

PDF Download

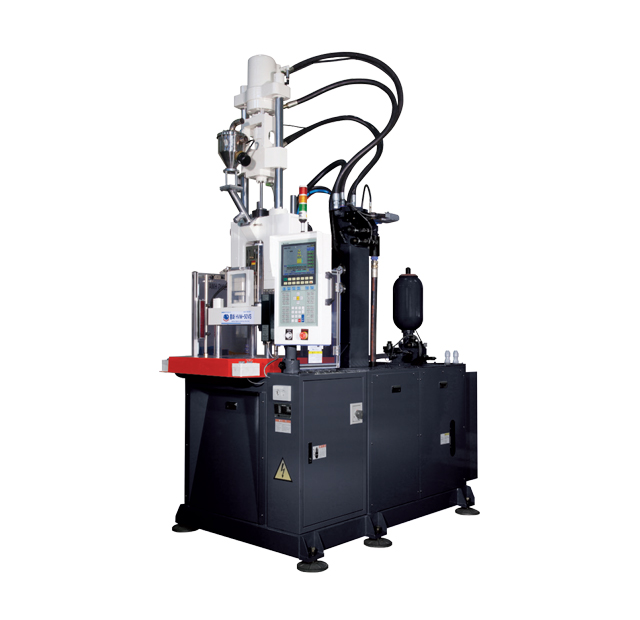

HVM

Characteristics

  • Ruggedness and accuracy
  • Minimize temperature management deviation with adopt complete range ceramic heaters
  • It is easy to install the auxiliary device such as Mold or Robot
  • Human-friendly and innovative design
  • Electric control safety circuit for worker’s safety during mold repair
  • Improvement of performance by hydraulic system module
  • Reliable drive system
  • Maximum realization of same level with wide Tie bar distance.
  • It is allow to change the height with minimum Mold according to the customer’s request
Tie - Bar Distance
V H
25TON 350 250
50TON 400 280
75TON 490 300
100TON 560 400
120TON 600 420
150TON 635 495
200TON 800 550
250TON 900 630
300TON 940 700
400TON 1100 920
500TON 1310 1080

Floor plan

도면

Technical Data - INJECTION

Screw Symbol Screw Diameter Injection Weight Injection Pressure Injection Rate Injection Distance Screw Rotation
Unit mm
g oz
kg/㎠ ㎤/sec mm rpm
HVM-25VS Y 18
21 1
2765 25 100 0-400
*A 22
32 1
1851 37
B 25
41 1
1434 48
HVM-50VS Y 22
48 2
2733 42 120 0-400
*A 25
62 2
2117 55
B 28
78 3
1688 69
HVM-75VS Y 28
103 4
2330 80 160 0-300
*A 32
135 5
1784 104
B 36
171 6
1410 132
HVM-100VS Y 32
143 5
2331 100 170 0-300
*A 36
182 6
1842 126
B 40
224 8
1492 156
HVM-120VS Y 36
192 7
2317 115 180 0-300
*A 40
237 8
1877 145
B 45
300 11
1483 227
HVM-150VS Y 40
264 9
2405 166 200 0-280
*A 45
334 12
1900 210
B 50
412 15
1539 259
HVM-200VS Y 45
367 13
2323 229 220 0-280
*A 50
453 16
1882 283
B 55
549 19
1555 342
HVM-250VS Y 50
495 17
2253 266 240 0-250
*A 55
598 21
1862 322
B 60
712 25
1564 383
HVM-300VS Y 50
495 17
2253 266 240 0-250
*A 55
598 21
1862 322
B 60
712 25
1564 383
HVM-400VS Y 55
598 21
2083 280 240 0-220
*A 60
712 25
1750 333
B 65
836 29
1491 391
HVM-500VS Y 60
712 25
2000 333 240 0-220
*A 65
836 29
1704 391
B 70
969 34
1469 453

Technical Data - CLAMPING

Clamping Force Opening Force Tie-bar Distance Mold base Size Min. Mold Thickness Clamping Stroke Ejection Force Ejection Stroke
Unit ton ton mm mm mm mm ton mm
HVM-25VS 25 2 350 X 250 475 X 315 180 200 2.1 50
HVM-50VS 50 4 400 X 280 520 X 400 200 250 2.7 60
HVM-75VS 75 6 490 X 300 610 X 450 230 280 2.7 70
HVM-100VS 100 8 560 X 400 764 X 614 290 300 4.3 80
HVM-120VS 120 10 600 X 420 790 X 640 300 330 4.3 100
HVM-150VS 150 13 635 X 495 900 X 750 300 400 4.3 110
HVM-200VS 200 17 800 X 550 1070 X 820 350 450 7 110
HVM-250VS 250 21 900 X 630 1150 X 900 350 450 7 110
HVM-300VS 300 25 940 X 700 1180 X 970 400 500 7 120
HVM-400VS 400 33 1100 X 920 1500 X 1330 450 600 11 120
HVM-500VS 500 42 1310 X 1280 1840 X 1520 500 700 11 120

Technical Data - COMMO

Oil Tank Capacity Pump Capacity Heater Capacity Machine Size Machine Weight
Unit ℓ kw/hp kw m ton
HVM-25VS 80 10 2.8 1.3 X 0.9 X 2.33 1.8
HVM-50VS 120 12 3.7 1.95 X 1.0 X 2.6 2.5
HVM-75VS 140 15 5.2 1.92 X 1.11 X 3.2 3.4
HVM-100VS 240 18.5 6.2 2.27 X 1.22 X 3.91 4.2
HVM-120VS 240 30 6.2 2.32 X 1.5 X 4.0 5.2
HVM-150VS 300 30 12.2 2.7 X 1.5 X 4.5 6.8
HVM-200VS 300 45 13 2.73 X 1.5 X 5.3 7.8
HVM-250VS 380 50 13 3.2 X 1.98 X 5.3 9
HVM-300VS 380 50 21 3.2 X 1.9 X 5.4 10.8
HVM-400VS 450 55 21 3.3 X 2.1 X 5.6 13.5
HVM-500VS 520 55 21 3.6 X 2.2 X 5.9 16.2
